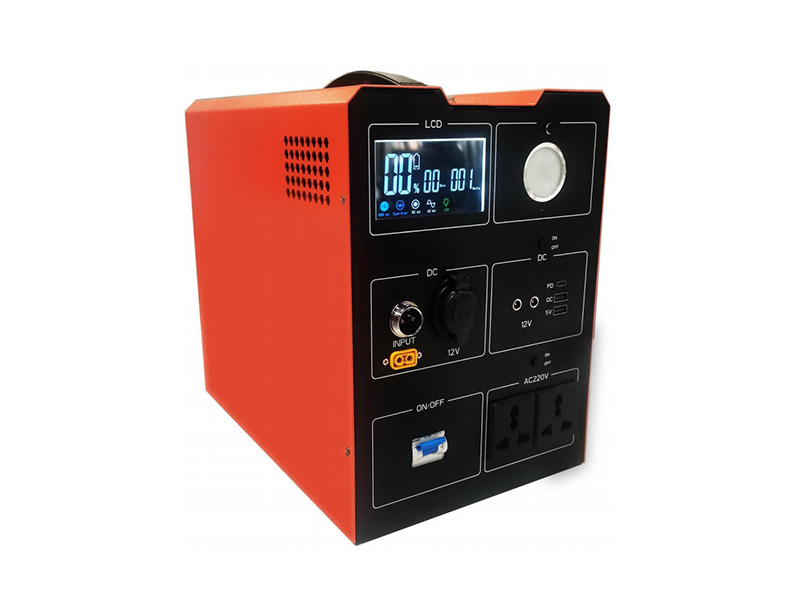

| 型号model | XHY-HW1000W |
| 系统容量System capacity | 1.536kWh |
| 直流输出电压The output voltage | PD QC 12V V |
| 电池电压battery voltage | 12.8V |
| 电芯类型Cell type | IFR |
| 逆变器输出电压/功率lnverter output | 220V110V/1000W |
| 循环次数Cycles | ≥2000 |
| 尺寸size | 300*260*200mm |
| 重量weight | 18Kg |
| 充电器电流charger current | 10A-30A选配 |
| 应用模式Application mode | / |
| 工作环境温度Working temperature | -20~50℃ |
| 海拔高度Altitude | ≤2000m |
|
型号 Model |
充电电流 Charge current |
充电电压 Charge voltage |
放电电流 Discharge current |
放电电压 Discharge voltage |
|---|---|---|---|---|
| 25.6V30Ah | 6A | 28.8V | 40A | 20V |
| 25.6V50Ah | 10A | 28.8V | 50A | 20V |
| 25.6V70Ah | 14A | 28.8V | 70A | 20V |
| 38.4V12Ah | 2.4A | 43.2V | 50A | 30V |
| 51.2V20Ah | 4A | 57.6V | 20A | 40V |
| 51.2V30Ah | 6A | 57.6V | 30A | 40V |
| 51.2V50Ah | 10A | 57.6V | 50A | 40V |
| 51.2V100Ah | 20A | 57.6V | 50A | 40V |
| 51.2V120Ah | 24A | 57.6V | 100A | 40V |
| 51.2V200Ah | 40A | 57.6V | 91A | 40V |
